Basic Uses
GUIBAO 1099 High Performance Silicone Structural Sealant is designed for
Colours
GB1099 is available in black, grey, white or other customized colours.
Packaging

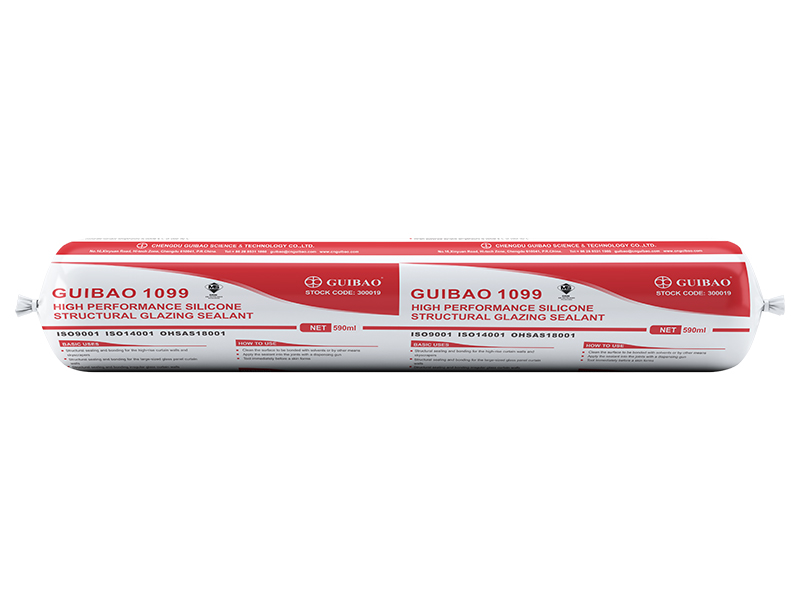

GUIBAO 1099 is available in disposable cartridges (net 300ml) and sausages (net 590ml).
For more details, please download: GUIBAO 1099 High Performance Silicone Structural Sealant
These values are not intended for use in preparing specifications.
| Test Method | Property | Unit | Standard | Result |
| GB/T 13477 (ISO 7390) | Slump | mm | ≤3 | 0 |
| GB/T 13477 (ISO 7390) | Extrusion rate | s | ≤3 | 4.2 |
| GB/T 13477 (ASTM D 2377) | Tack free time | h | ≤10 | 0.3 |
| GB/T 531.1 (ISO 7619) | Hardness | Shore A | 30～60 | 47 |
| GUIBAO 16776 (ASTM C 792) | Heat Aging | |||
| weight loss | % | ≤10 | 3.2 | |
| cracking | Nil | Nil | ||
| chalking | Nil | Nil | ||
| GB/T 13477 (ISO 8339) | Tensile strength | MPa | ||
| 23℃ | ≥0.6 | 1.36 | ||
| 90℃ | ≥ 0.45 | 0.95 | ||
| -30℃ | ≥ 0.45 | 1.99 | ||
| water immersion | ≥ 0.45 | 1.42 | ||
| water-UV exposure | ≥ 0.45 | 1.23 | ||
| adhesion failure | % | ≤ 5.0 | 0 | |
| elongation at ultimate tensile strength at 23℃ | % | ≥ 100 | 286 |
*GB: Chinese National Standard
ASTM: American Society for Testing and Materials
ISO: International Standardization Organization
Complete technical information and literature, adhesion testing and compatibility testing results are available from GUIBAO.
Read More
Surface Preparation
Clean all joints removing all foreign matter and contaminants such as oil, grease, dust, water, frost, old sealants, surface dirt, or glazing compounds and protective coatings.
Application Method
Install back-up materials or joint fillers, setting blocks, spacer shims, and tapes. Mask areas adjacent to joints to ensure neat sealant lines. Primer is generally not required for non-porous surfaces, but may be necessary for optimal seal performance of certain porous surfaces. So adhesion test is always recommended.
Apply GUIBAO 1099 in a continuous operation using dispensing guns. Before a skin forms, tool the sealant with light pressure to spread the sealant against the backing materials and joint surfaces. Remove masking tape as soon as the bead is tooled.
